Customized Operable Partition Wall with Top-Hung Design and High-Quality Materials for Up to 18M Height

Nome da marca:	AE
Número do modelo:	AE100
MOQ:	10 metros quadrados
preço:	USD 80-108 Per Square Meter
Condições de pagamento:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Capacidade de Fornecimento:	1000 metros quadrados por mês

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Cantão, China

Certificação:

ISO9001 SGS

Nome do produto:

Paredes divisórias operáveis

Material:

MDF com melamina

Opção de acabamento:

Materiais fornecidos pelo cliente

Altura:

Até 18M

Projeto:

OEM e ODM

Isolamento acústico:

MAX 56DB

Detalhes da embalagem:

camada de espuma e papelão duro com caixa de madeira compensada ou palete de aço

Destacar:

Top-Hung Design Operable Partition Wall

High-Quality Materials Movable Partition Wall

Up to 18M Height Room Divider

Descrição do produto

AE Room Dividers - Customizable Movable Partitions for Restaurants and Offices

Dining Hall Movable Panel Operable Partition Wall System for Training Rooms

Enhance your training room with our Dining Hall Movable Panel Operable Partition Wall System. Designed for flexibility, it offers seamless reconfiguration, excellent sound insulation, and a stylish appearance. Easy to install and adjust, it adapts to your needs, transforming spaces effortlessly for any event.

Key Features of Banquet Hall Movable Partition Walls

Efficient Space Division: Quickly separate spaces in hotel banquet halls with our movable partition wall panels
Top-Hung Design: Clean look with a top-hung system that eliminates the need for floor tracks
High-Quality Materials: Crafted from high-density aluminum frames, specialized rubber, premium sound insulation cotton, and durable finished surfaces
Enhanced Sound Insulation: Sound insulation rubber around panels effectively blocks noise and enhances privacy
Smooth Operation: Panels hang on aluminum track with multi-directional wheels for effortless movement

Roller Options & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Unique patented wheel surface and shape for easy operation

Panel Options & Features

Thickness options: 68mm, 89mm, and 105mm
Wide variety of acoustical and decorative finishes available
6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m magnetic attraction

Technical Specifications

Series	Element Thickness (mm)	Element Width (min/max)	Clear Height (min/max)	Construction	Panel Fixing	Element Interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

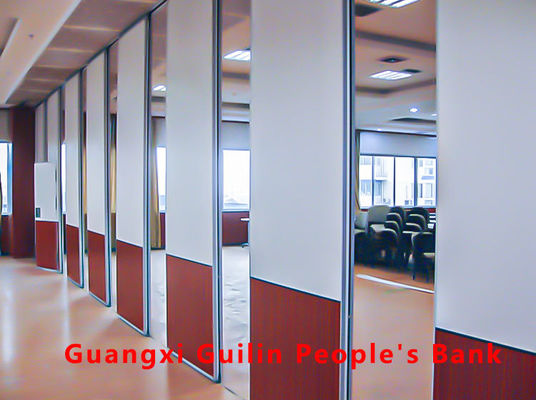

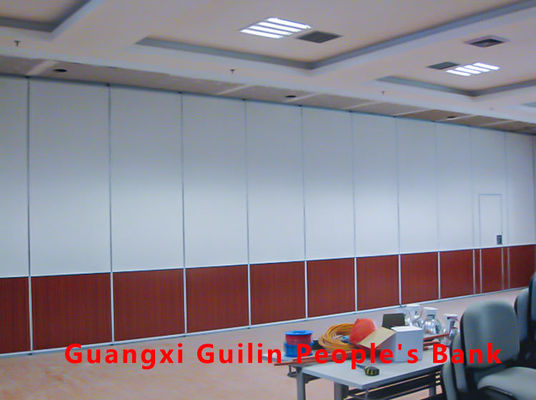

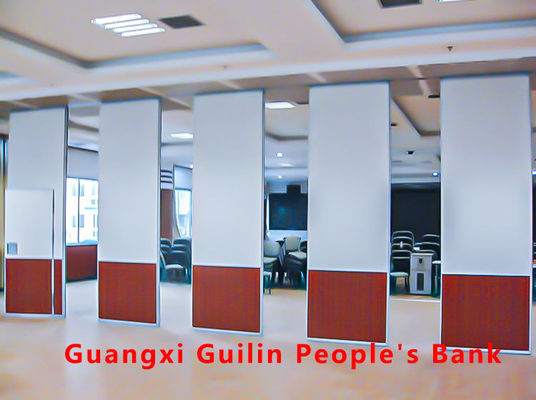

Project Examples
