Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System

Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System

Nome da marca: AE
Número do modelo: AE65
MOQ: 10 metros quadrados
preço: USD 79-108 per square meter
Condições de pagamento: T/T, L/C, União Ocidental
Capacidade de Fornecimento: 1000 metros quadrados por mês
Informações pormenorizadas
Lugar de origem:
Cantão, China
Certificação:
ISO9001 SGS CANS
Série:
AE65 Parede divisória móvel
Opção de acabamento:
Materiais fornecidos pelo cliente
Aplicação:
Restaurante, sala de reuniões.
Grossura:
68cm
Classificação STC:
42-56 dB
Dimensões:
Personalização (Alta: até 4,5 m, Largura por painel: até 1,2 m)
Nome:
Parede divisória móvel
Detalhes da embalagem:
camada de espuma e papelão duro com caixa de madeira compensada ou palete de aço
Destacar:

68CM Thickness Movable Partition Wall

,

800N Sealing Power Operable Wall System

,

40N/m Magnetic Attraction Room Divider

Descrição do produto
Customizable Movable Partition Wall Office Operable Wall Systems

AE operable partitions are a series of panels suspended from tracks with high quality, functionality and variability for room-dividing and multifunctional layout configuration.

Key Features
  • German Partition Technology Global Professional Space Solutions
  • Highly competitive prices
  • Good quality control
  • Smooth communication
  • State-of-art technology products
  • Effective OEM&ODM service
Roller Options & Features
  • Dupont POM roller
  • 304 stainless steel heavy duty roller with safety device & CNC machining
  • Unique and patented wheel surface and shape for easy operation
Panel Options & Features
  • Thickness: 68mm, 89mm & 105mm options
  • Wide variety of acoustical and decorative finishes available
  • 6061-T6 profile with Q235 steel frame for superior durability
  • Top & bottom jack lifting mechanism seal with 800N power
  • Magnetic seal in concave & convex profile with 40N/m magnetic attraction
Technical Specifications
Series Element Thickness (mm) Element Width (mm)* Clear Height (mm)* Construction Panel Fixing Element Interconnection
AE65 68 600/1,250 2,000/4,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE85 89 600/1,250 2,000/5,500 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
AE100 105 600/1,250 2,000/18,000 Aluminium-steel Freely oscillating Aluminium profile with magnetic strip and sealing lips
Technical Details
  • Weighted sound reduction value: 52/56 dB (Rw) per GB/T19889.3-2005
  • Positive and frictional locking of vertical element connections
  • Convex-concave profile form with magnetic strip attraction force of 40 N/m
* Larger widths possible on application. Provisional details regarding element heights/widths require consultation with Design Department.

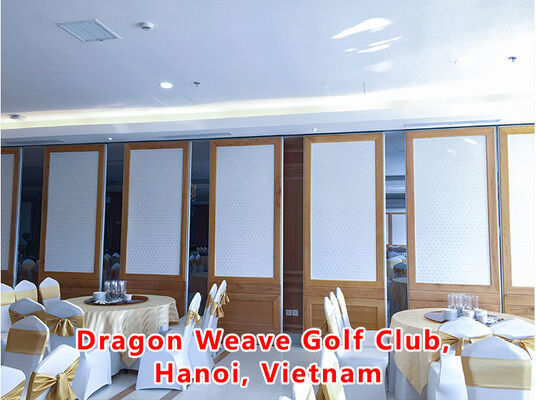

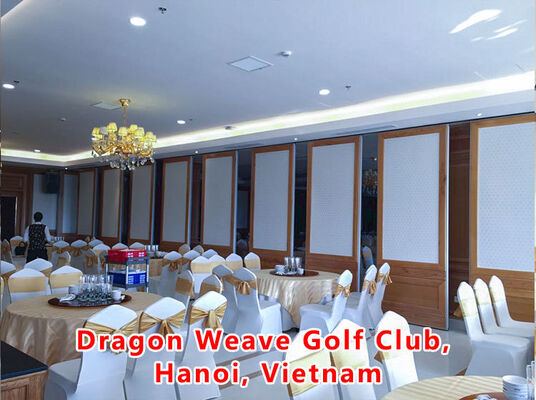

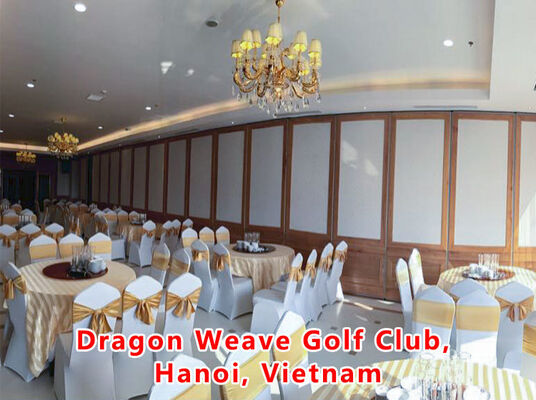

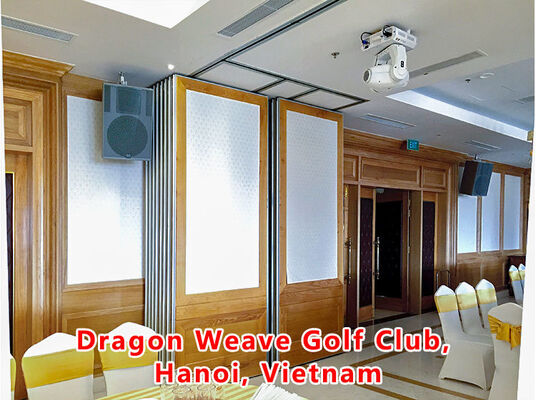

Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System 0 Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System 1 Customizable Movable Partition Wall with 68CM Thickness and 800N Sealing Power Operable Wall System 2
